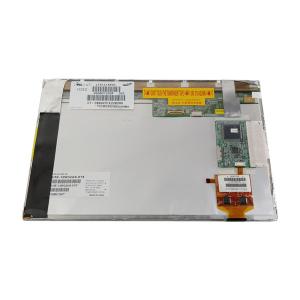

LTN121AP05-302 LCD Display 1280*800 LCD module 12.1 inch LCD Panel

Ask Lasest Price
Brand Name :	Samsung
Model Number :	LTN121AP05-302
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000 Unit/Units per Month
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

LTN121AP05-302 LCD Display 1280*800 LCD module 12.1 inch LCD Panel

LTN121AP05-302 LCD Display 1280*800 LCD module 12.1 inch LCD Panel

LTN121AP05-302 LCD Panel Product details :

Brand	Samsung
Model P/N	LTN121AP05-302
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 124PPI
Pixel Format	RGB Vertical Stripe
Active Area	261.12(W)×163.2(H) mm
Bezel Opening	264.12(W)×166.20(H) mm
Outline Dim.	276.8(W)×180(H)×6.6(D) mm
Luminance	200 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Support Color	262K 45% NTSC
Form Style	-
Frame Rate	60Hz
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	PVA, Normally Black, Transmissive
Light Source	WLED, 12K hours , With LED Driver
Designed For	Laptop,Pad & Tablet
Touch Panel	Without
Interface Type	eDP (1 Lane), eDP1.1, HBR1 (2.7G/lane)30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LTN121AP05-302 LCD Display 1280*800 LCD module 12.1 inch LCD Panel

LTN121AP05-302 LCD Screen Payment :

Payment Methods: We accept payments through Alipay, Credit card, bank transfer, Western Union, Moneybooker, and other online payment platforms. You can choose the method that best suits your preferences and convenience.

Payment Deadline: Payment must be completed within 3 days of placing your order. This ensures timely processing and delivery of your purchase.

Checkout Process: If you encounter any difficulties during the checkout process after the auction closes, we kindly ask for your patience. Sometimes, delays may occur due to technical reasons. Please retry the payment process after waiting for a few minutes. Remember, payments must still be finalized within the 3-day deadline.

LTN121AP05-302 LCD Screen note :

1. Is the LCD model searched by the search engine consistent with the one you need to buy? Some models look similar, but in fact there will be one or two letters or numbers that are different, which will lead to the difference between what you buy and what you actually need. In addition, there are a few LCD screens of the same model, which will have several LCD interfaces. So you must carefully compare the LCD model, LCD interface and LCD bracket.

2. Many buyers can't tell whether they need to buy a separate LCD screen or a LCD assembly, resulting in many buyers choosing the wrong products. But before you buy a LCD screen, please try to separate your LCD screen from the cover in front of the notebook. If you can easily separate it, you can buy a LCD screen separately. If it is difficult to separate, it is likely to be full of glue. You need to go to a professional maintenance site for freeze separation. I suggest you buy LCD assembly

3. Because there are a wide variety of LCD models, many models are compatible with each other, so all LCD screens in my store are sent according to the general compatible models selected according to the inventory. It is not guaranteed to send the same model, so please pay attention. If you need a special model, you must communicate with customer service to confirm before purchasing.

LTN121AP05-302 LCD Panel Shipping and Package :

LTN121AP05-302 LCD screen possible purchase groups:

We are pleased to offer you a bundle option with the LTN121AP05-302 LCD display. We would like to inform you that our shipping charges are non-negotiable. If these conditions do not apply to you, we recommend that you do not bid. These costs include not only postage costs but also administrative costs, miscellaneous supplies, handling costs and VAT.

We assure you that our P&P pricing includes postage, padded envelopes and administration fees. If you do not agree to these administrative fees, we kindly invite you not to purchase.

Thank you very much for your understanding and cooperation. If you have any questions or concerns, please feel free to contact us. We are here to help you.

LTN121AP05-302 LCD Panel FAQ :

Q: How do you ship my goods LTN121AP05-302 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd display screen LTN121AP05-302 at a very low value ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty of LTN121AP05-302 ?

A: 90 days warranty .
