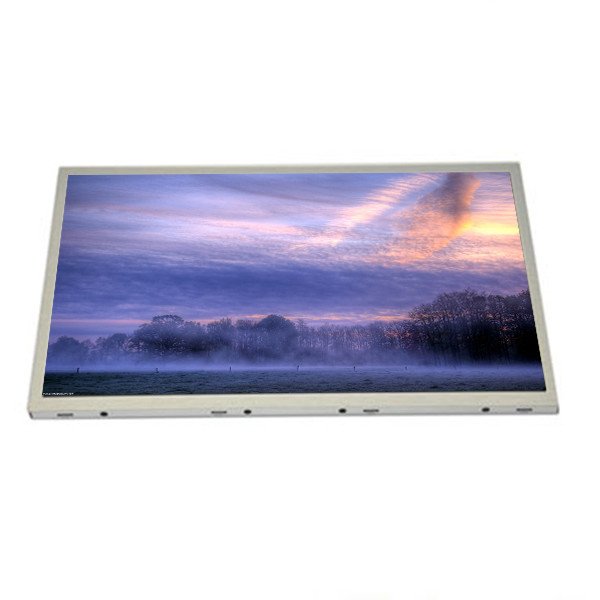

6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel

Shenzhen Yongsheng Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel from wholesalers

    Buy cheap 6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel from wholesalers
    • Buy cheap 6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel from wholesalers

    6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL10276BC13-01BD
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel

    6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel


    Product details :


    NEC LCD Screen NL10276BC13-01BD
    ManufacturerNEC
    Model NameNL10276BC13-01BD
    Screen Size6.5inch
    Panel Typea-Si TFT-LCD, LCM
    Resolution1024(RGB)×768, XGA 196PPI
    Pixel layoutRGB Vertical Stripe
    Active Area132.096(W)×99.072(H) mm
    Bezel Opening-
    Outline (mm)153(W)×118(H)(D) mm
    TreatmentAntiglare, Hard coating (2H)
    Luminance440 cd/m² (Typ.)
    Contrast Ratio-
    Viewing angle80/80/80/60 (Typ.)(CR≥10)
    Response25 (Typ.)(Tr/Td)
    View Direction6 o'clock
    Work ModeTN, Normally White, Transmissive
    Color Depth262K/16.7M 36% NTSC
    Backlight6 strings WLED , 13K hours , No Driver
    Mass-
    Used forIndustrial
    Refresh Rate60Hz
    TouchscreenPCAP, Air Bonding
    Signal TypeLVDS (1 ch, 6-bit) , 20 pins Connector
    Voltage Supply3.3V (Typ.)
    EnvironmentStorage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
    6.5 inch Touchscreen NL10276BC13-01BD Display Screen Panel

    Why Choose Us :


    According to customers' various requests,


    we can match all accessories which inclusive of driver board,


    touch-screen, LED backlight & LVDS cables. TFT LCD,


    LCD panel, LCD display,LCD screen, LCD monitor,


    LCD module from 2.2 inch to 88 inch.


    Quality promised, 100% original,fast delivery,


    also enjoy one year guarantee !


    Shipping and Package :


    1)All of our product will be testing before shipping. So you can be assured the quality of our products


    2) All Panels are packed with new and firm carton, capable of long distance transportation.


    3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT


    4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.


    Shipping:


    You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We will help you check it with post office or courier and cooperate closely with you to solve the problem.


    FAQ:


    Q: How can I trace my order of NL10276BC13-01BD ?


    A: we will give you tracking number then you can trace your order from website.


    Q: How long will I receive my goods NL10276BC13-01BD ?


    A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.


    Q: How to make payment of NL10276BC13-01BD?


    A: We accept T/T , Paypal , western union .


    Q: Can I pay my order of NL10276BC13-01BD via credit card ?


    A: Yes!you can use your credit card through your Paypal account.
