12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel

Shenzhen Yongsheng Innovation Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel from wholesalers

    Buy cheap 12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel from wholesalers
    • Buy cheap 12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel from wholesalers
    • Buy cheap 12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel from wholesalers

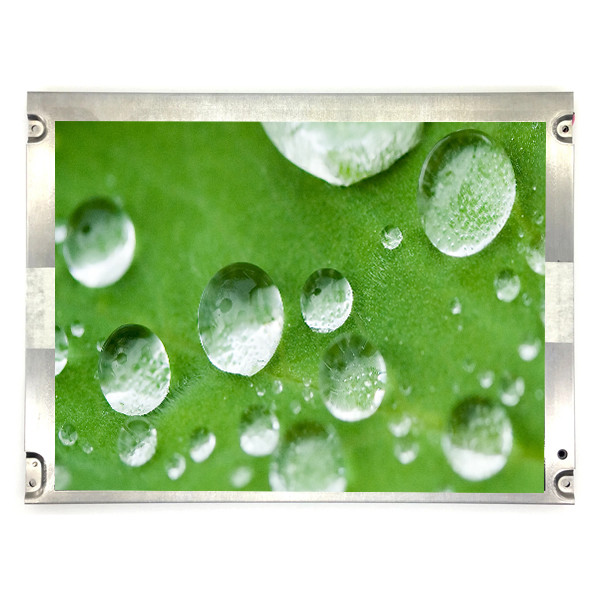

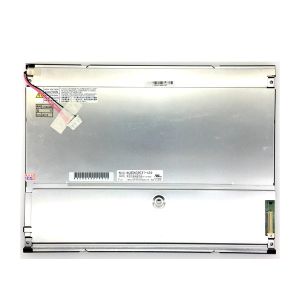

    12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC31-42D
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel

    12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel


    NL8060BC31-42D Product details :


    NEC LCD Screen NL8060BC31-42D
    ManufacturerNEC
    Model NameNL8060BC31-42D
    Screen Size12.1 inch
    Screen typeLCM, a-Si TFT-LCD
    Resolution800(RGB)*600 [SVGA] 82PPI
    Pixel configurationRGB vertical bar
    Display size246 * 184.5 mm (H*V)
    physical dimension280 * 210 * 11.5 mm (H*V*D)
    Visual size249.0 * 187.5 mm (H*V)
    Surface treatmentMatte, Hard coating (3H)
    Brightness (cd/m²)400 (Typ.)
    Contrast600: 1 (Typ.) [Transmission]
    Best angle6 o'clock
    Optical modeTN, normally white display, transmissive
    Viewing angle80/80/80/60 (Typ.)(CR≥10)
    responding speed6/19 (Typ.)(Tr/Td) ms
    Number of colors262K, 40% NTSC
    Backlight type2 pcs CCFL, without driver
    Screen weight670/700g (Typ./Max.)
    Refresh rate60Hz
    signal systemCMOS (1 ch, 6-bit), connector, 41 pins
    Supply voltage3.3/5.0V (Typ.)(VCC)
    Maximum ratingStorage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²)
    12.1 inch 82ppi lcd screen NL8060BC31-42D with 800(RGB)×600 lcd panel

    Why Choose US NL8060BC31-42D ?


    1. Factory Direct Sales

    We can promise the quality ourselves and the price is absolutely advantage.


    2. Professional Technical Support

    Our technical team can solve the problems encountered in the use process for you.


    3. Support OEM/ODM Customization

    We can Personalized customization for customers,Include PCB Board,Learning set,Robot car kit and package design etc.


    4. Professional Sales Team

    Our sales team will provide you with one-to-one service and solve all your after-sales problems.


    5. To Be Your Reliable Supplier and Agent in Shenzhen, China

    We hope to be your agent in China. In addition to our products, we can help you purchase the products you need and handle the freight together, so as to save your time and transportation cost.


    NL8060BC31-42D Shippment & Packing


    NL8060BC31-42D Packing area:


    Here is our packing area .We are professional High-tech technology company in China with over 100,000pcs of product full in stock , no matter how many you order , we can ship out in 7 working days after paid .


    NL8060BC31-42D Delivery:


    We are VIP of Fedex/UPS and DHL, normally takes 3-4 workdays to US. And would also buy insurance before shipping to guarantee your goods safety.


    NL8060BC31-42D About warranty and Return:


    We offer one year warranty for most of our products and professional technical support .


    Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.


    1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.


    2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.


    NL8060BC31-42D FAQ:


    Q: How can I trace my order of NL8060BC31-42D ?

    A: we will give you tracking number then you can trace your order from website.


    Q: Can you give me a discount if I need a large quantity of NL8060BC31-42D ?

    A: Of course!If you make a large order, we will give you a discount.


    Q: Can I pay my order of NL8060BC31-42D via credit card ?

    A: Yes!you can use your credit card through your Paypal account.


    Q: Can You declare my order of NL8060BC31-42D to a lower price in commercial invoice for customs ?

    A: Yes , we can . pls inform us before shipping .
