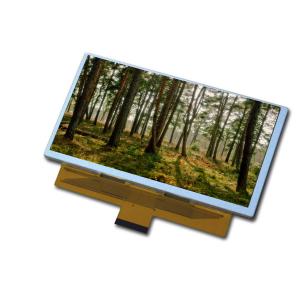

    G156BGE-L03 15.6 Inch LCD Panel RGB 1366X768 WXGA 100PPI 500cd/M2 LVDS Input

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : G156BGE-L03
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    G156BGE-L03 15.6 Inch LCD Panel RGB 1366X768 WXGA 100PPI 500cd/M2 LVDS Input

    15.6 inch LCD panel G156BGE-L03 support 1366(RGB)*768 [WXGA] 100PPI 500cd/m lvds input 60HZ LCD screen


    Product details :


    Innolux LCD SCREEN G156BGE-L03
    ManufacturerInnolux
    Model NameG156BGE-L03
    Screen Size15.6 inch
    Screen TypeLCM , a-Si TFT-LCD
    Pixel Number1366(RGB)×768 (WXGA) 100PPI
    ArrangementRGB Vertical Stripe
    Active Area(mm)344.232 × 193.536 (H×V)
    Outline(mm)363.8 × 215.98 × 9.8 (H×V×D)
    Bezel Area(mm)347.53 × 196.84 (H×V)
    TreatmentAntiglare, Hard coating (3H)
    Luminance500 cd/m² (Typ.)
    Contrast Ratio600 : 1 (Typ.) (TM)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)
    Response3/8 (Typ.)(Tr/Td) ms
    Work ModeTN, Normally White, Transmissive
    Color Depth16.7M 63% NTSC
    BacklightWLED , 50K hours , With LED Driver
    Mass720/755g (Typ./Max.)
    Used forIndustrial
    Refresh Rate60Hz
    TouchscreenWithout
    Signal TypeLVDS (1 ch, 8-bit) , 30 pins Connector
    Voltage Supply5.0V (Typ.)
    Max. RatingsStorage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 60 °C
    15.6 inch LCD panel G156BGE-L03 support 1366(RGB)*768 [WXGA] 100PPI 500cd/m lvds input 60HZ LCD screen

    Helpful Information:


    - We provide a wide variety of LCD screens, touch screens, inverters and other accessories.


    - Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.


    - Please confirm it with us before buying if you need 100% new products only.


    - If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.


    After payment:


    After your payment please leave your monitor name and screen model ASAP.Once we got it we ship to you soon.We have to personally confirm your bought is correct screen model.


    payment:


    Standard payment terms: T/T, L/C.


    Online trade assurance order, all is up to you.


    More payment terms could be provided.(PAYPAL, WESTERN UNION, or others)


    Shipping :


    1. Worldwide shipping.


    2. Orders will be delivered in 3 working days after receiving full payment.


    3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.


    4. We are not responsible for any customs duties and additional taxes.


    Warranty:


    After-sales Service: When order complete,an email will be sent out to confirm the value andshipment methods.Then the shipment tracking number will be shared with email asalways.100% strict inspection and test before shipment. Replace in one week once originaldefective goods found on arrival.Enjoy 1 year free replacement warranty.


    FAQ:


    Q: Can I pay my order of G156BGE-L03 via credit card ?

    A: Yes!you can use your credit card through your Paypal account.


    Q: Can you give me a discount if I need a large quantity of G156BGE-L03 ?

    A: Of course!If you make a large order, we will give you a discount.


    Q: How can I trace my order of G156BGE-L03 ?

    A: we will give you tracking number then you can trace your order from website.


    Q: How long is the warranty ?

    A: We offer 90 days warranty .
