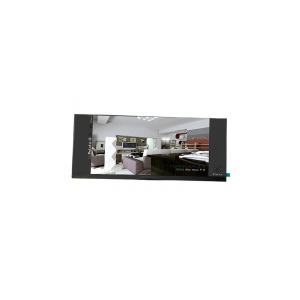

    Buy cheap original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen from wholesalers

    Buy cheap original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen from wholesalers
    • Buy cheap original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen from wholesalers

    original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen

    Ask Lasest Price
    Brand Name : HannStar
    Model Number : HSD077IPW1-A00-0299
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen

    original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen


    HSD077IPW1-A00-0299 LCD Panel Product details :


    BrandHannStar
    Model P/NHSD077IPW1-A00-0299
    Diagonal Size7.7" (Native bar)
    Panel Typea-Si TFT-LCD, CELL, FOB
    Resolution1280(RGB)×400 174PPI
    Pixel FormatRGB Vertical Stripe
    Active Area186.624(W)×58.32(H) mm
    Bezel Opening-
    Outline(mm)194.124(W)×68(H)×1.27(D)
    Luminance0 (cd/m²)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)
    Good View at-
    Glass Thickness0.50+0.50 mm
    Color Depth262K/16.2M 60% NTSC
    Mass40.0g (Typ.)
    Refresh Rate60Hz
    TreatmentHard coating
    Contrast Ratio-
    Work ModeTN, Normally White, Transmissive
    Response10/20 (Typ.)(Tr/Td) ms
    Transmissivity-
    BacklightNo B/L
    Used forStretched Bar LCD,Automotive Display
    TouchscreenWithout
    Driver IC listBuilt-inCOG2 source + 1 gate chips
    Signal TypeLVDS (1 ch, 6/8-bit), 40 pins Connector
    Voltage Supply3.3/12.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL)
    Max. RatingsStorage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C
    original 7.7 inch 1280*400 HSD077IPW1-A00-0299 262K LCD Screen
    HSD077IPW1-A00-0299 LCD Panel Note :
    Model Verification:
    Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
    Comprehensive Testing:
    We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

    HSD077IPW1-A00-0299 LCD Panel Shipping and Package :

    HSD077IPW1-A00-0299 LCD Panel Shipping Guidelines:
    Address Confirmation:
    It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
    Shipment Timeline:
    Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
    HSD077IPW1-A00-0299 LCD Panel ESTIMATED DELIVERY TIME :
    Standard Shipping:
    The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
    Expedited Shipping:
    For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

    HSD077IPW1-A00-0299 LCD Panel FAQ :


    Q: How long will I receive my goods of lcd HSD077IPW1-A00-0299 ?

    A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.


    Q: When will my order HSD077IPW1-A00-0299 ship?

    A: The order are shipped within 1-2 working days after received the payment.


    Q: Do you accept the sample order?

    A: Yes , sample order is welcome.


    Q: What does "We may ship a 100% compatible part number for your screen" mean?

    A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
